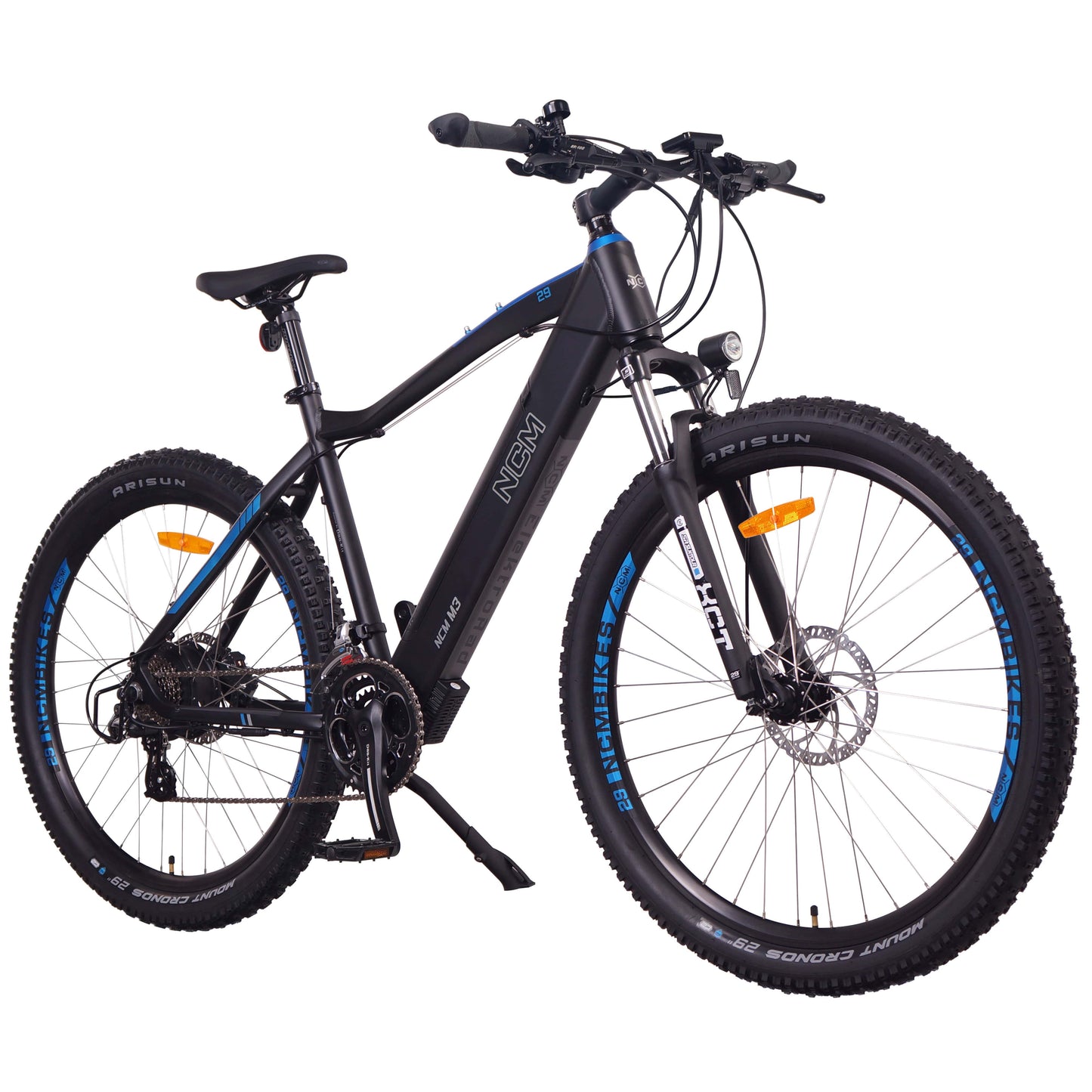

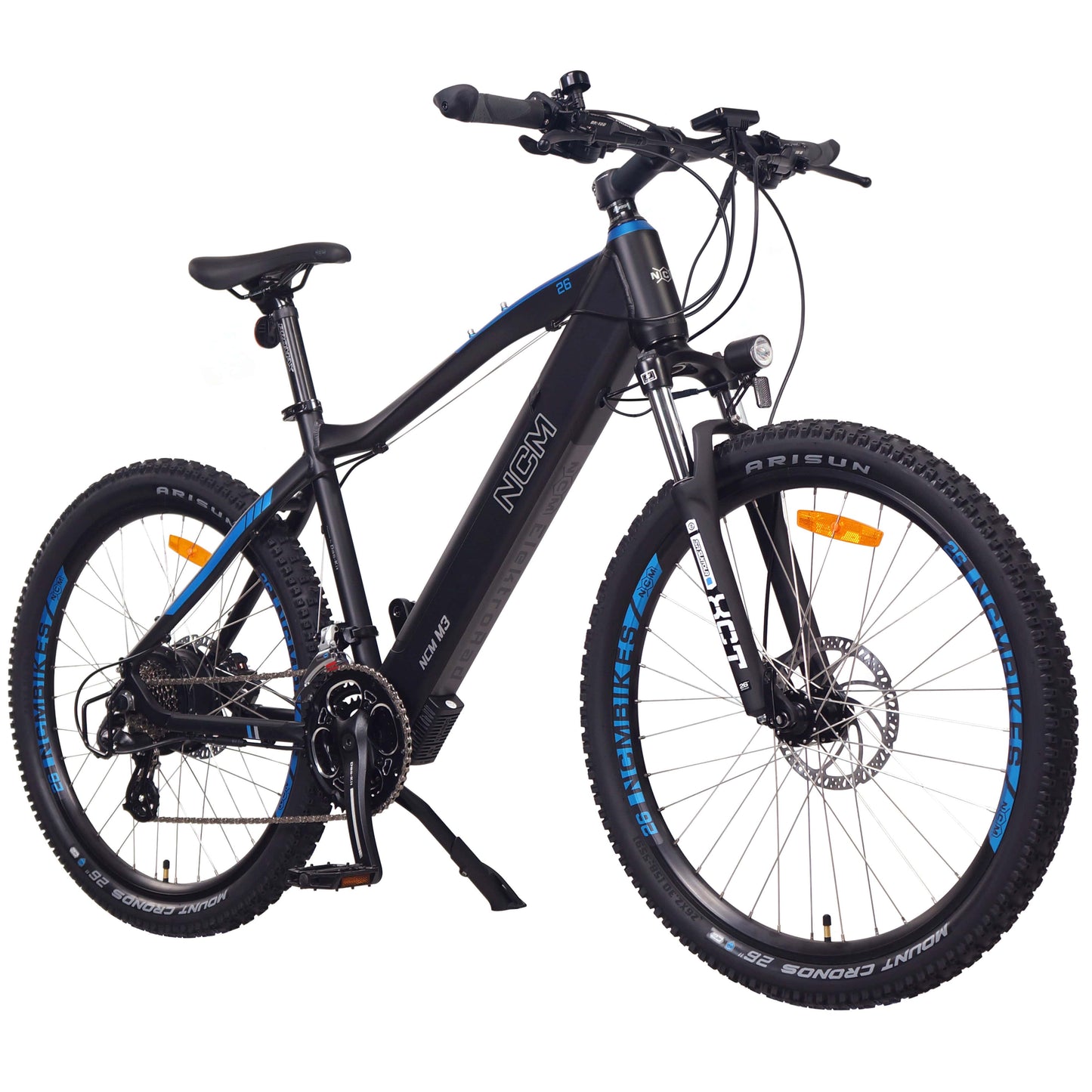

NCM M3

An entry-level e-mountain bike that doesn’t compromise on high-quality components, the NCM M3 is built to maintain its cool no matter what mountain trail it faces, balancing range and performance with accessibility and ease of use.

BIKE COMPONENTS

Frame: Alu. 6061, 26"*18.1 inches / 27.5"*18.9 inches / 29"*20.5 inches

Suspension Fork: Suntour, XCT

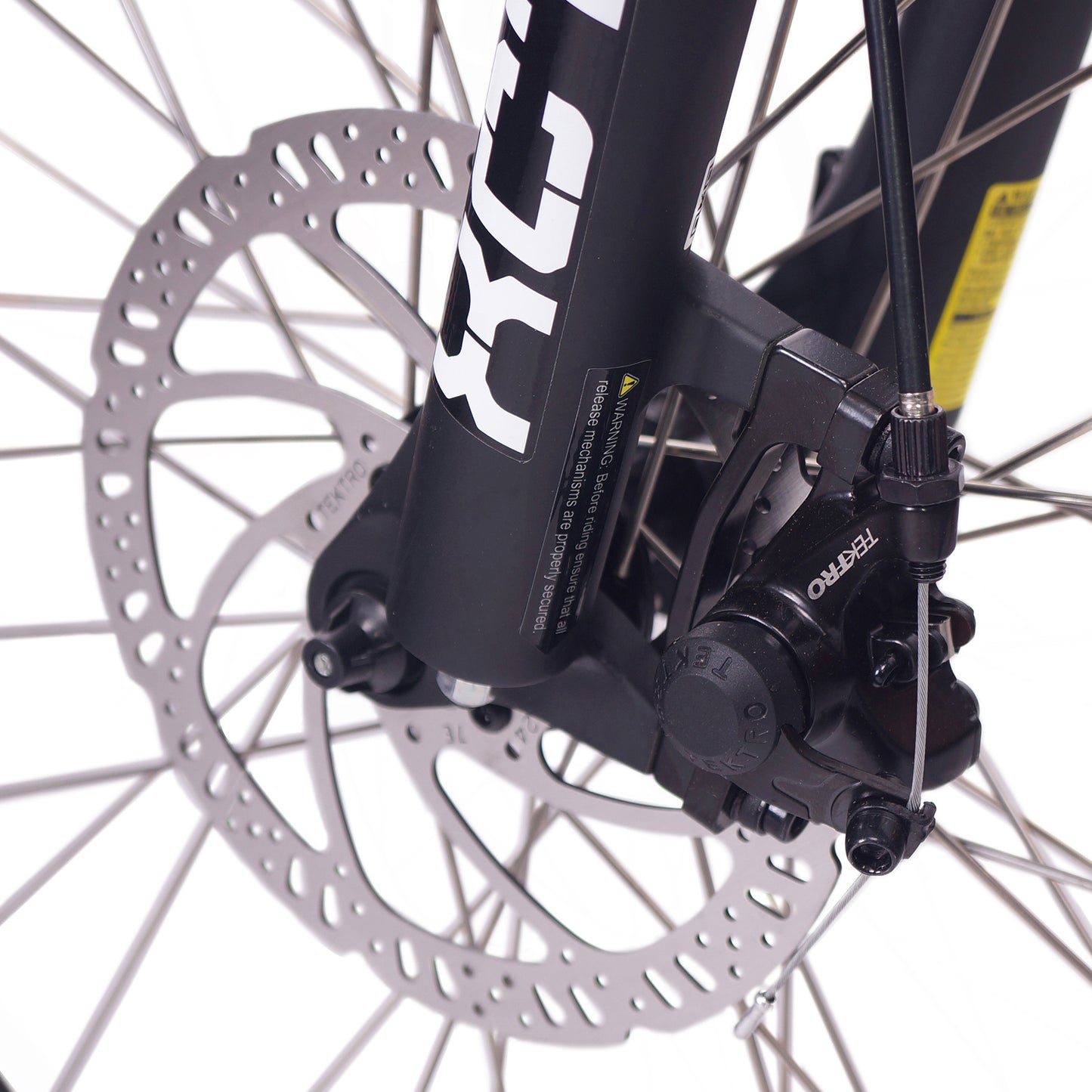

Brake: Hydraulic Disc Brakes

Freewheel: 7 Speed, 14-28T

Tire: Arisun Mount Cronos

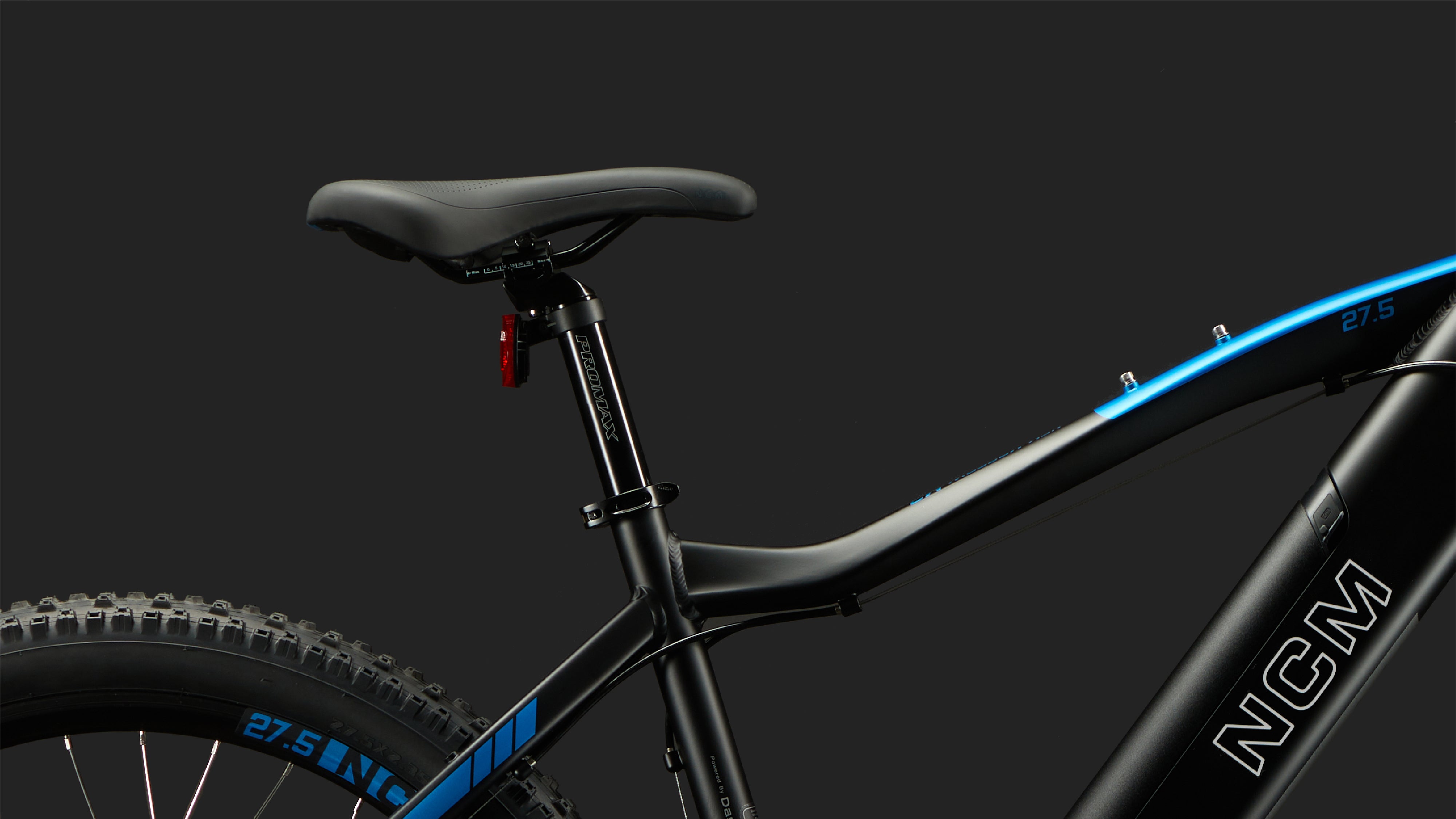

Saddle: VELO, VL-3410

Stem: Promax, Alu.MA-471

Crank: DAS-KIT, CM48,28/38/48T

Shifter Left: Shimano, Altus, F: SL-M315-L, 3 Speed

Shifter Right: Shimano, Altus, R: SL-M315-7R, 7 Speed

Front Derailleur: Shimano, Altus, FD-M313

Rear Derailleur: Shimano, Altus, RD-M310

Chain: KMC, Z51

ELECTRIC COMPONENTS

Battery: Das-Kit, i6-4812, 48V 12AH, 576WH

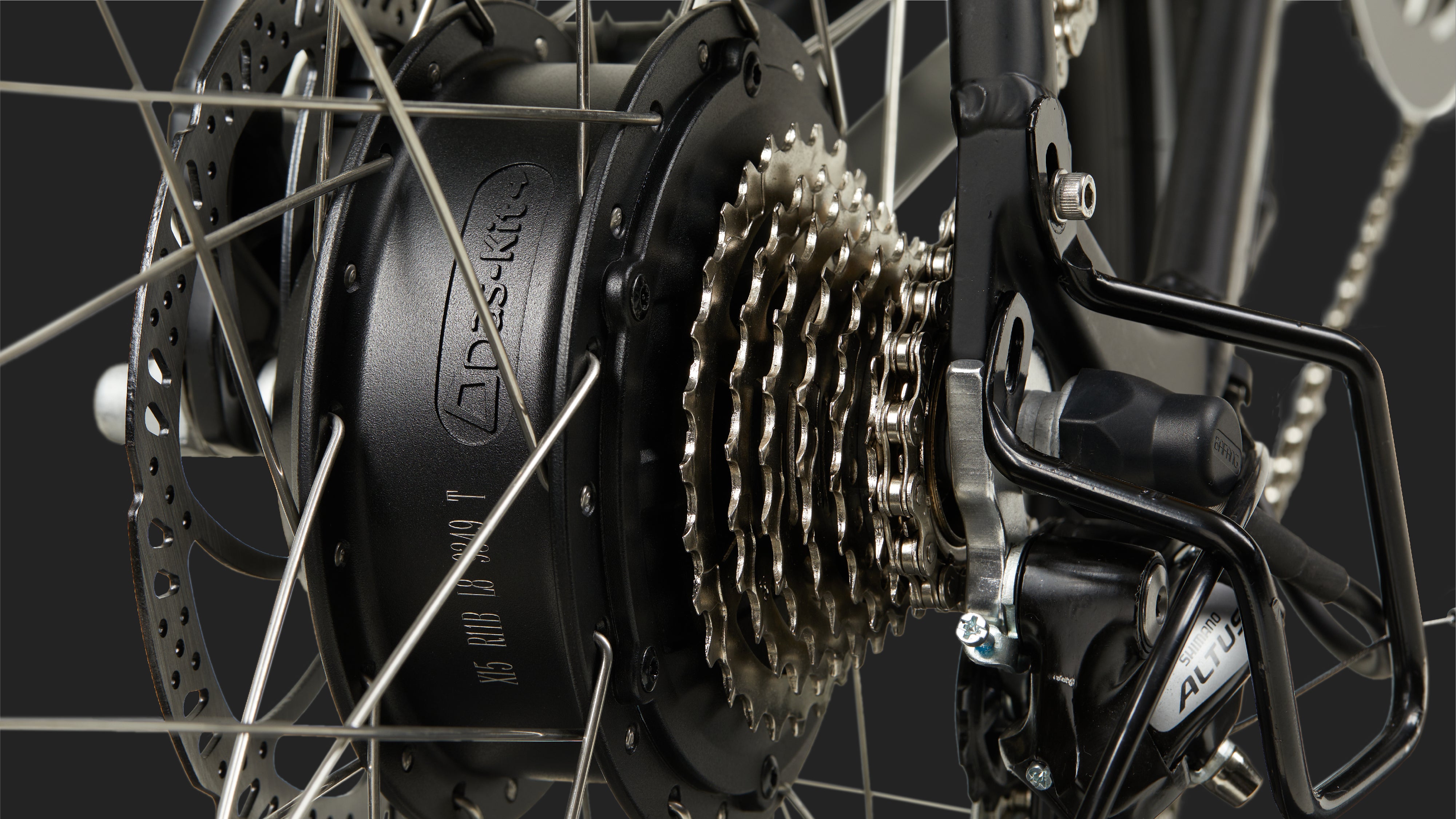

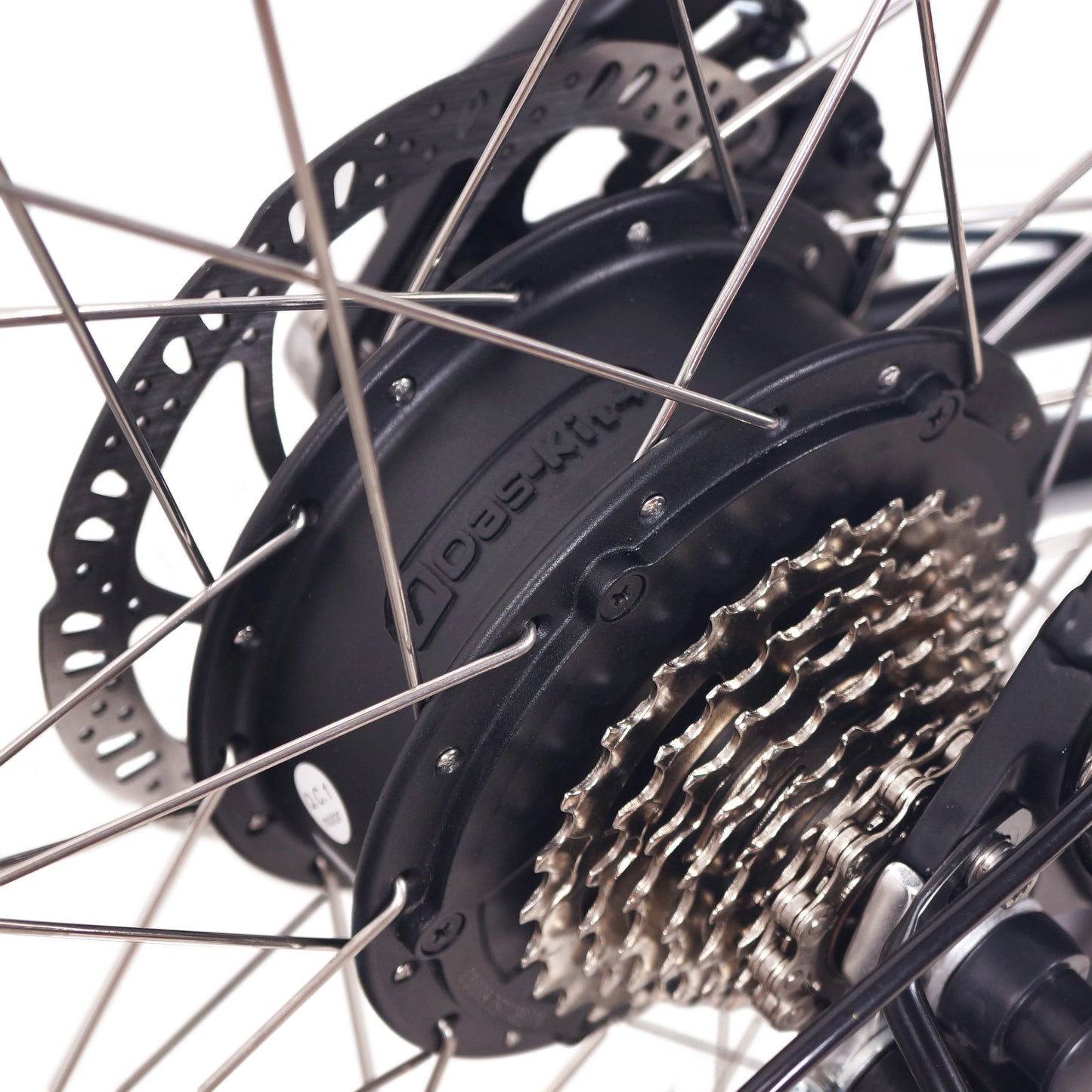

Motor: Das-Kit, X15, Rear drive motor, 48V 250W, 25KM/H

Controller: Das-Kit, CT-i6, 48V18A

Charger: Das-Kit, 48V2A

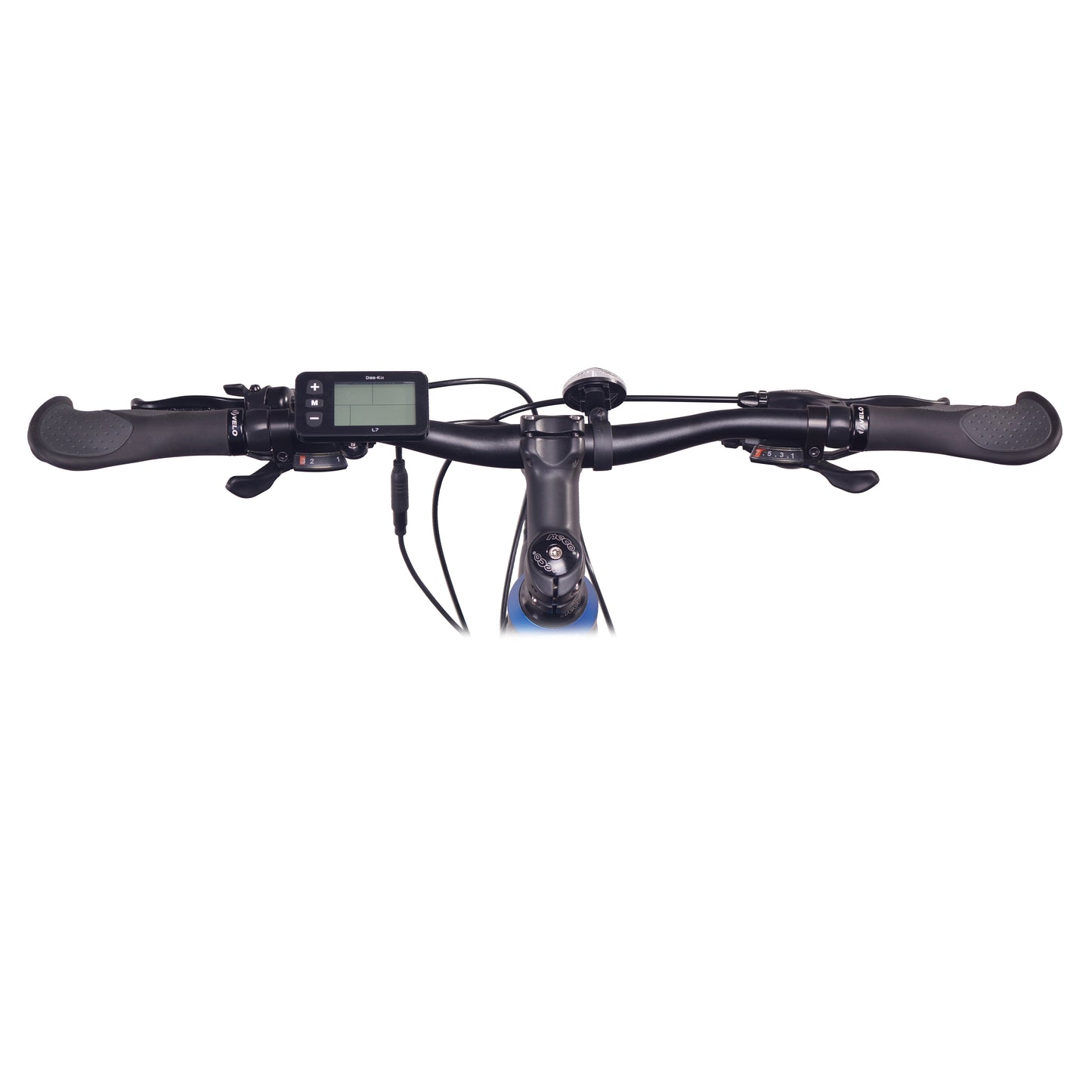

Display: Das-Kit, L7

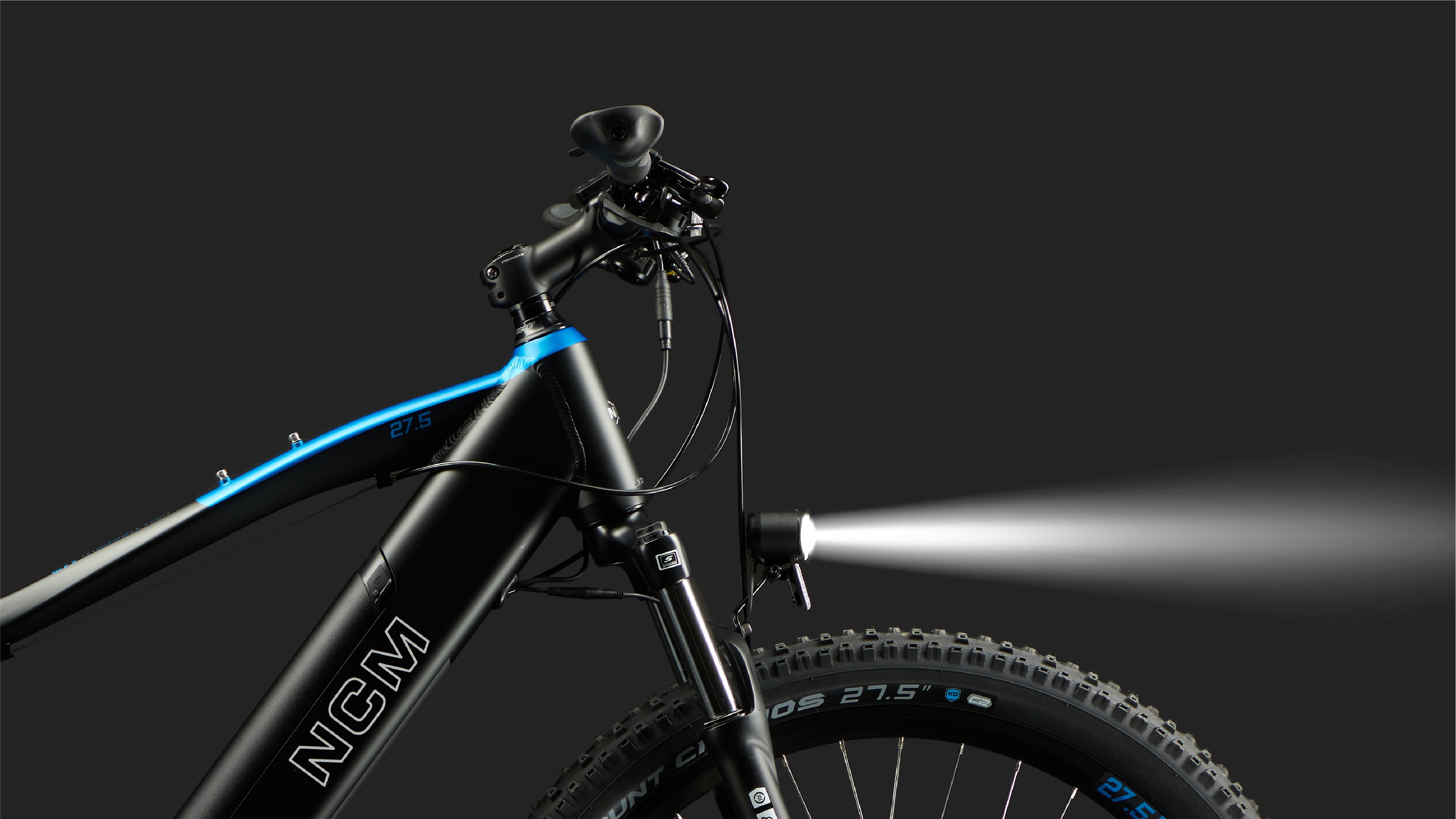

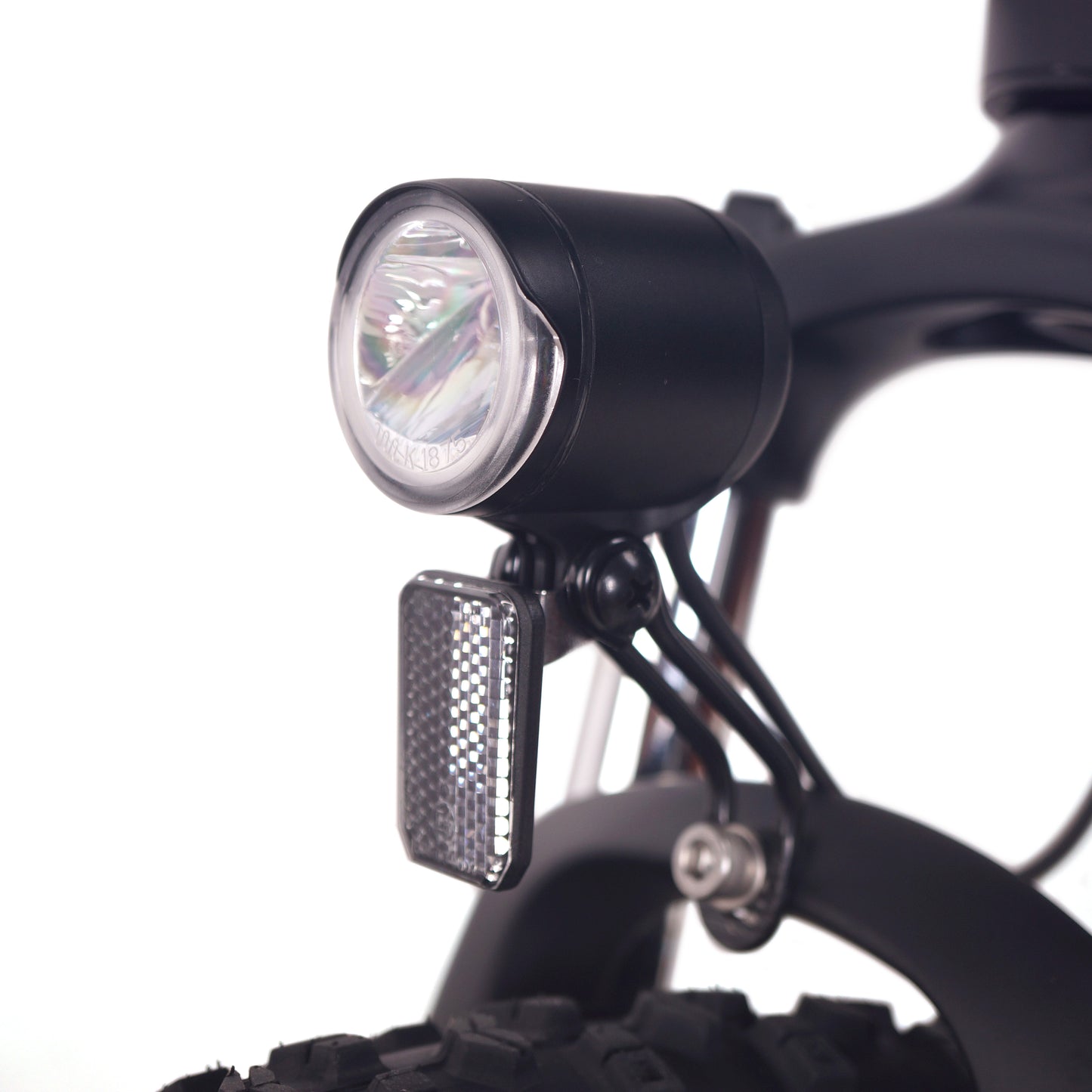

Front Light: DH002, 48V, 40 Lux

WEIGHT

Net Weight (with battery): 26.0kg

Battery Weight: 3.4kg

Max Load (driver+bike): 125.0kg
