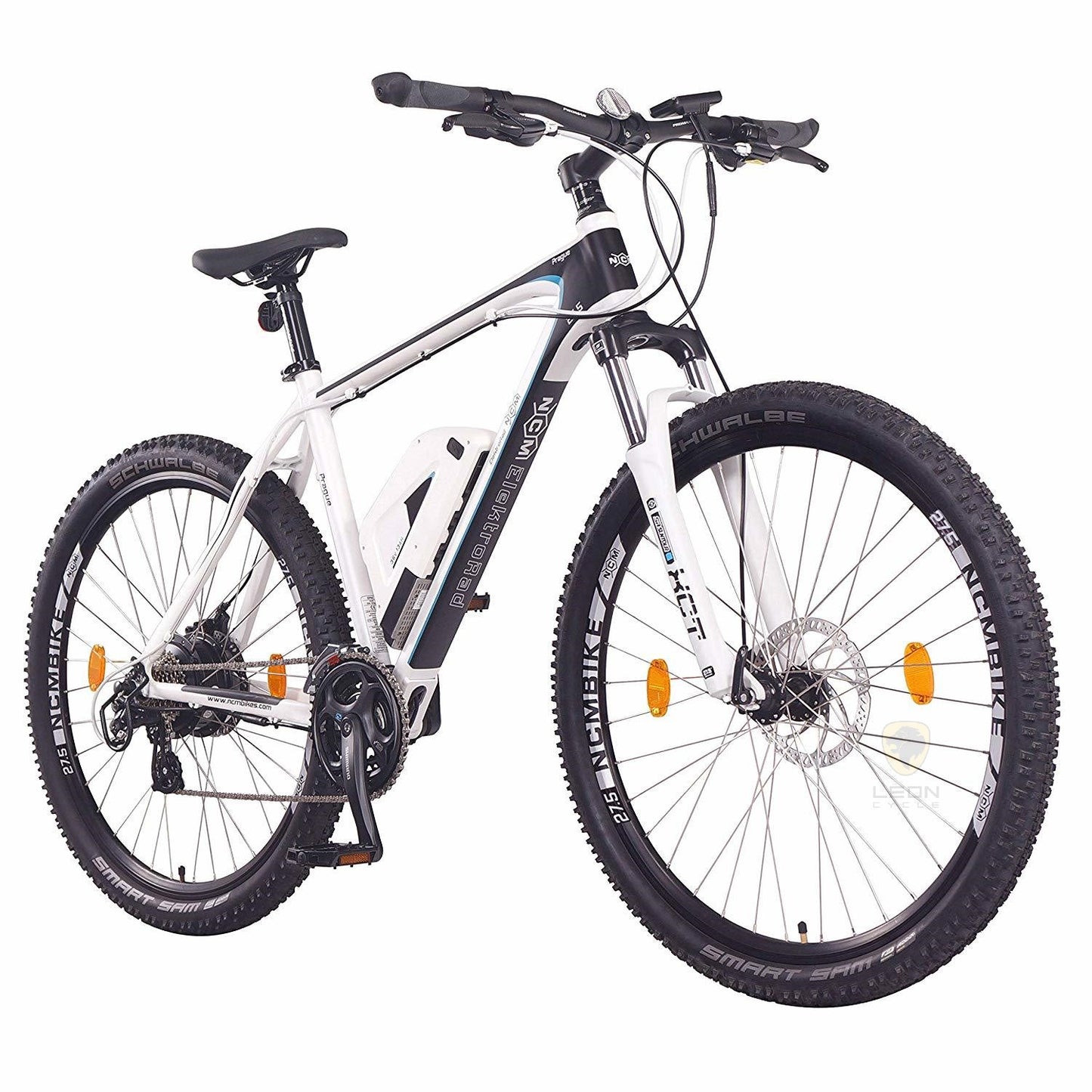

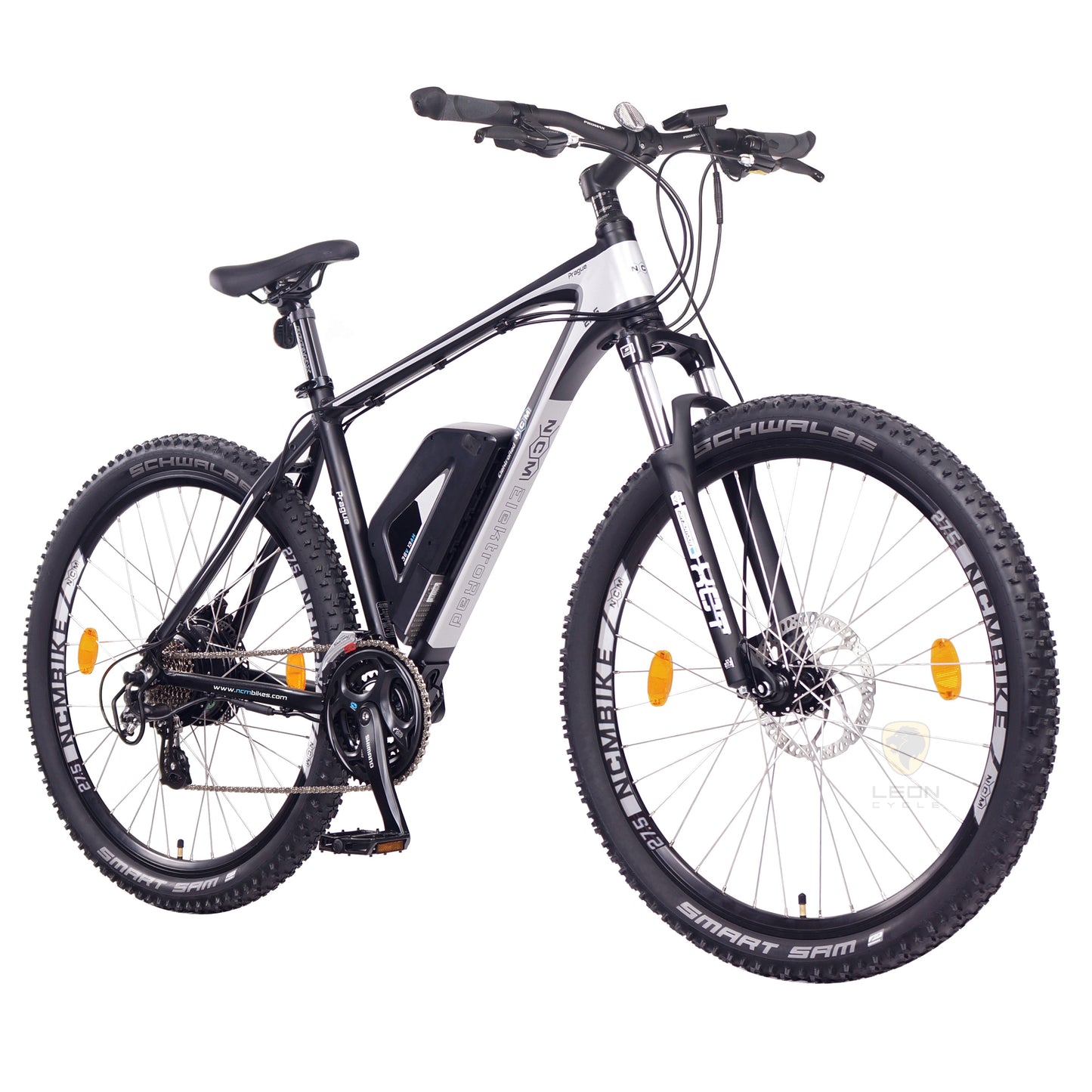

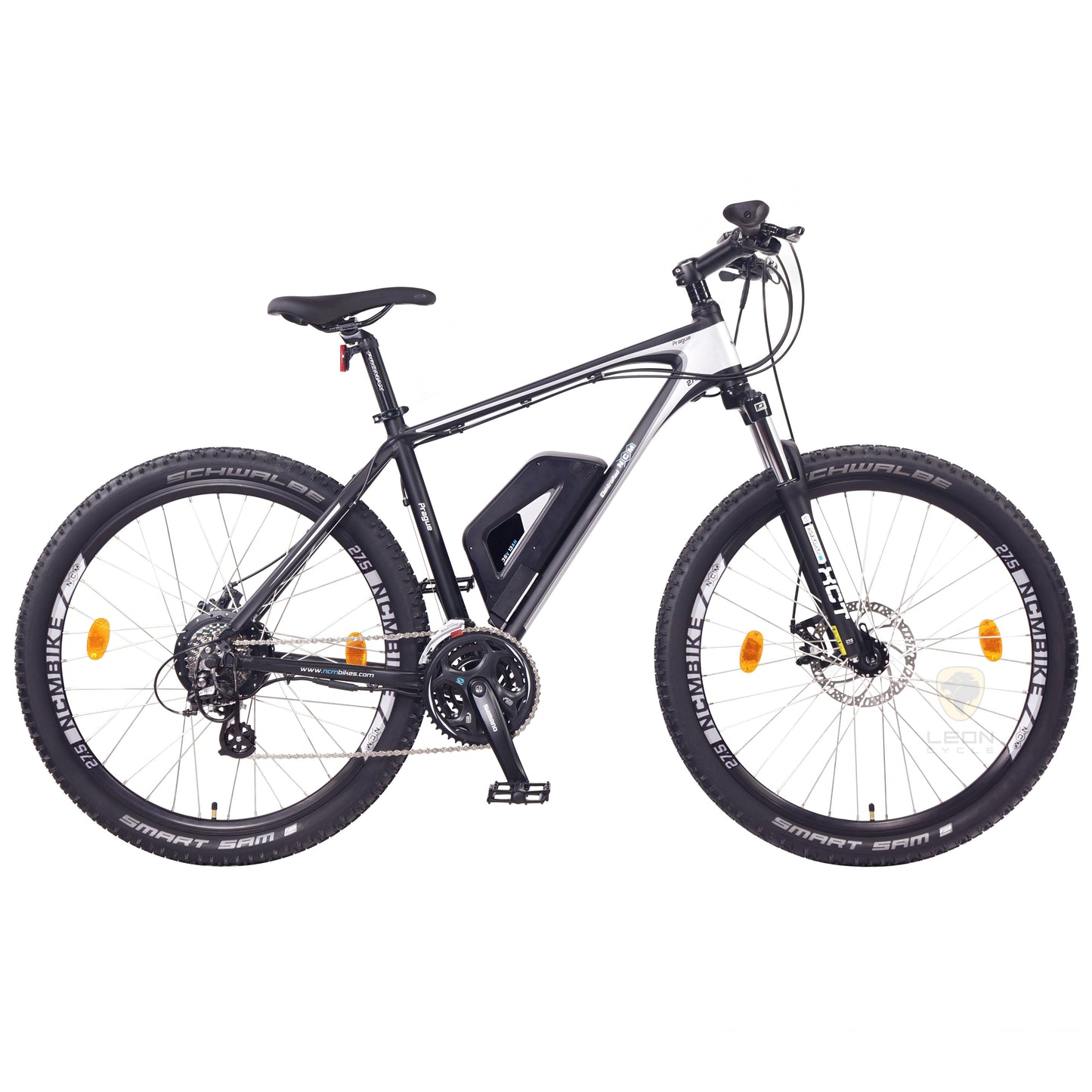

NCM Prague
With a traditional compact frame set and bottle mount battery setup, the NCM Prague is very capable and perfect for commuters and delivery riders. This E-bike is designed with a tough aluminium frame and a strong rigid handlebar and saddle for improved ergonomics and performance. The high-top tube makes the bike sturdy and strong allowing the power you put down to be effectively transferred to the road. Strong dependable and reliable workhorse capable of everything you throw at it. This is the Ute of E-bikes.
A reputable and capable Das-kit motor draws power from a high capacity 36V lithium-ion battery to offer an impressive range—up to 70km in normal operation, or 100kmin Eco mode. With 6 assist levels (or level 0, if you wish to ride without assistance) and multiple indicators, our Das-Kit display will always keep you informed about your ride. The Suntour XCT, while absorbing knocks and shocks, can also be adjusted for both rugged trails and paved roads. Shimano gearing offers you 21 speeds for a refined transmission and smooth riding experience. Tektro disc brakes will ensure that your thrills on the trails stop when you want them to. The NCM Prague is amazing value for never-ending fun.
BIKE COMPONENTS

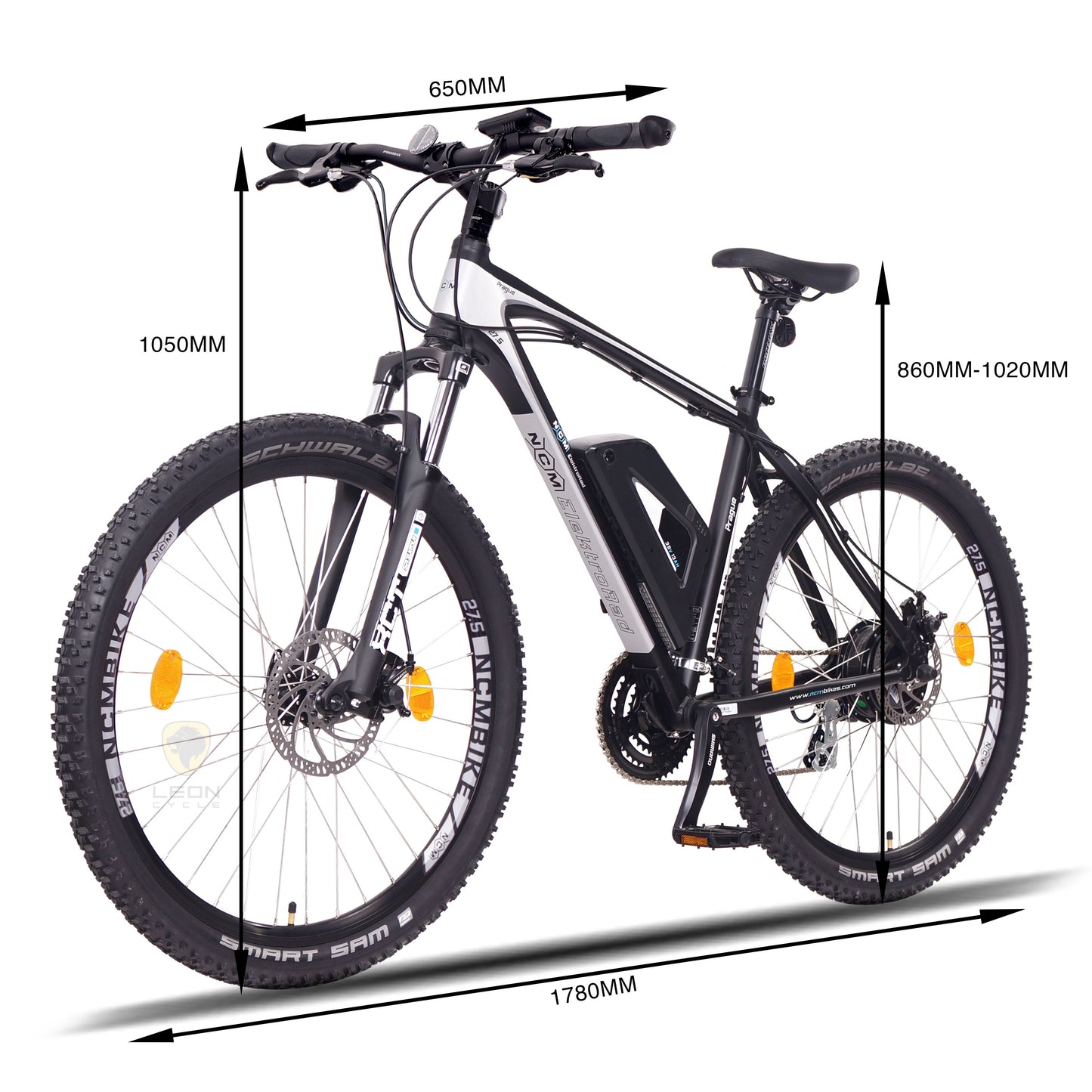

Frame: Aluminium 6061, 26"* 440mm / 27,5“*480mm / 29"*520mm
Suspension Fork: Suntour XCT 100mm
Brake: Tektro Mechanical Disc
Freewheel: Shimano Altus 7 speed
Tire: Schwalbe Black Jack 26"2.1 Schwalbe Smart Sam 27.5×2.25, 29×2.25
Saddle: VELO, VL-3410
Crank: Shimano, Altus M311
Shifter: Shimano, Altus, F: M315-L, 3-Speed; R: M315-7R, 7-Speed
Front Derailleur: Shimano, Tourney TX50, 3-speed
Rear Derailleur: Shimano, Altus RD-M310, 7-speed
ELECTRIC COMPONENTS
Battery: DEHAWK, D5, 36V 13Ah, 468Wh with USB Port
Motor: Das-Kit, X15, Rear drive motor, 36V 250W, 25KM/H
Controller: Das-Kit, CT-D5-44, 36V 15A
Charger: DC362AU 36V 2A
Display: Das-Kit, L6B, LCD, 6 Assistance levels
Front Light: Cateye, Front reflector
Rear Light: Cateye, Rear reflector
WEIGHT
Net Weight (with battery): 25.0kg
Battery Weight: 3.5kg
Max Load (driver+bike): 125kg
