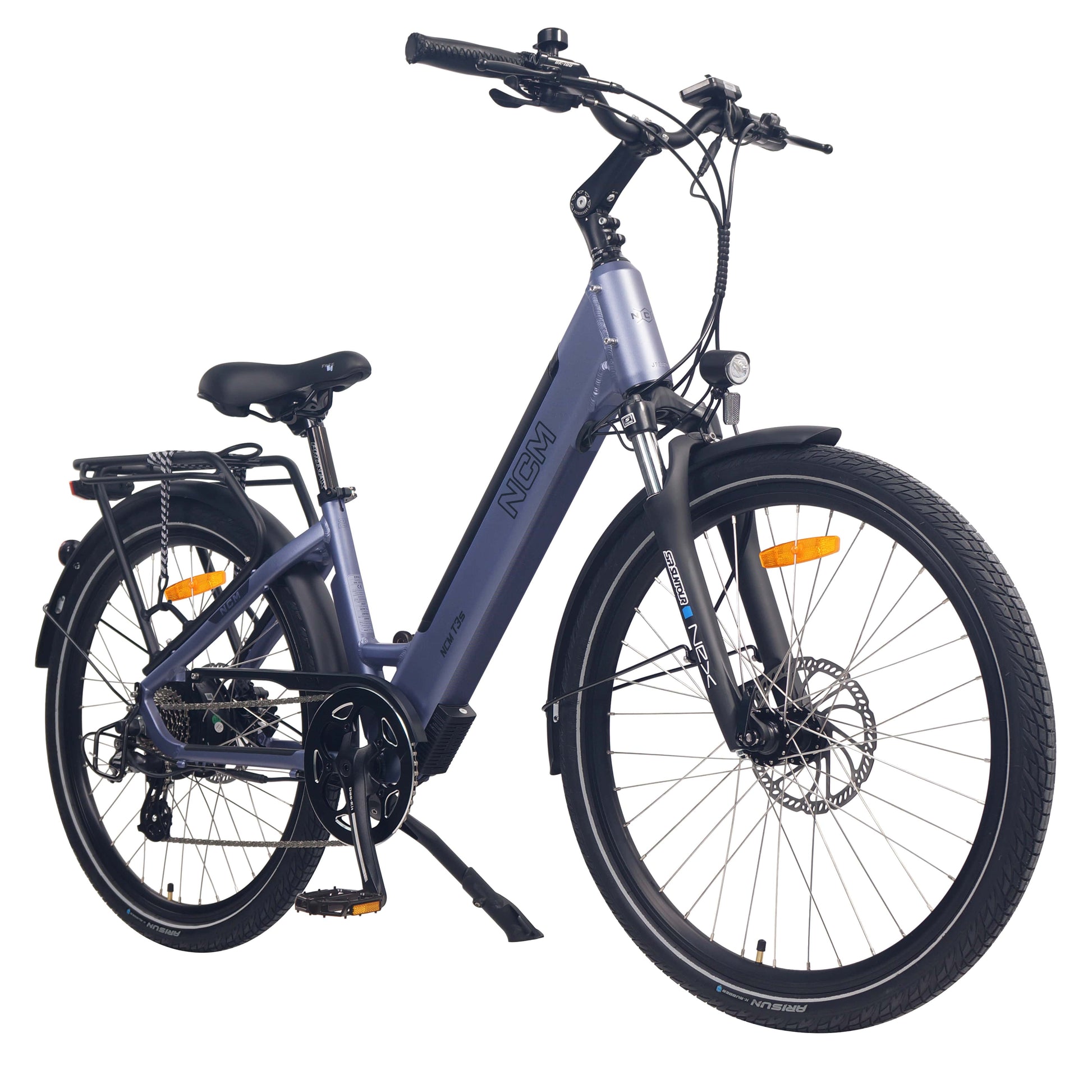

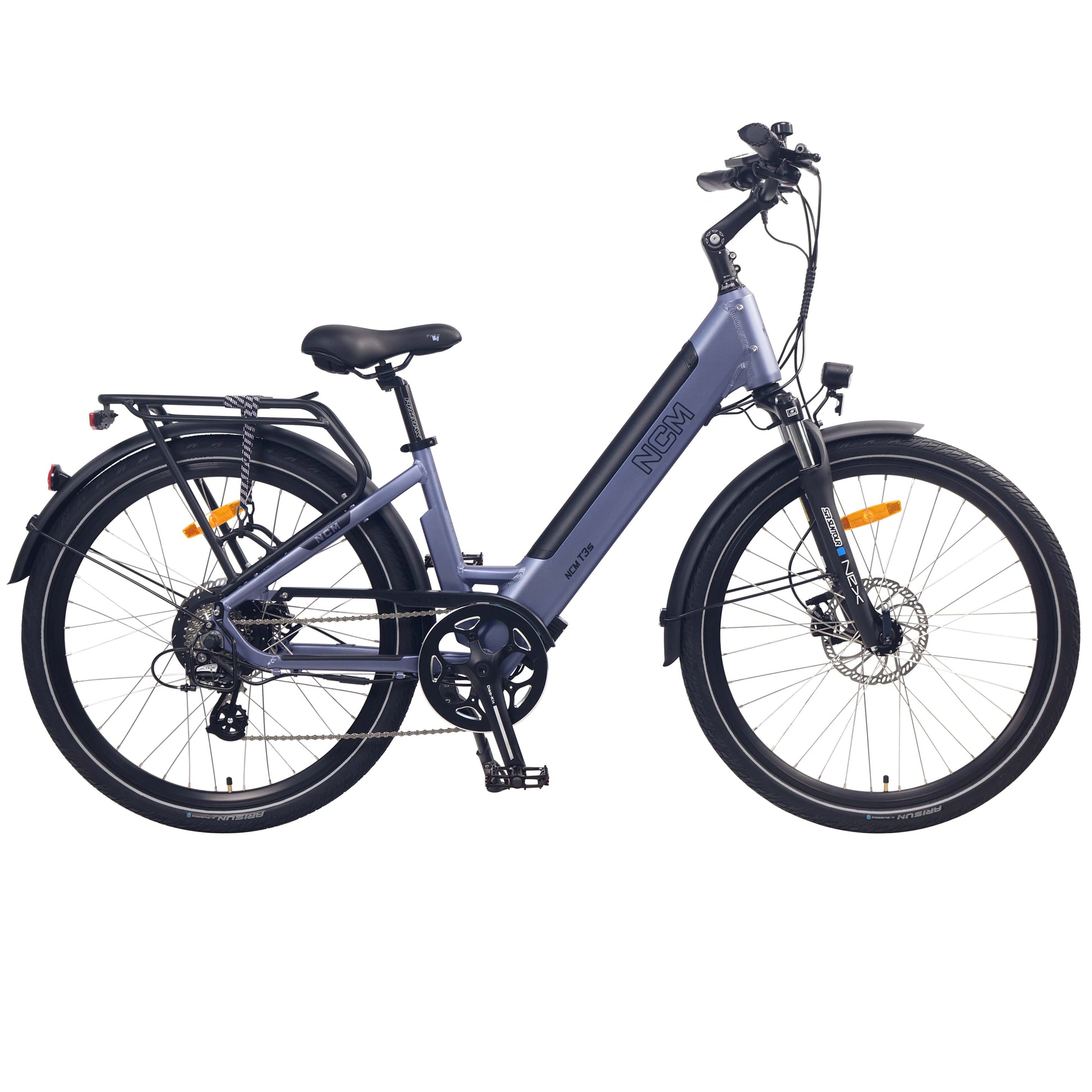

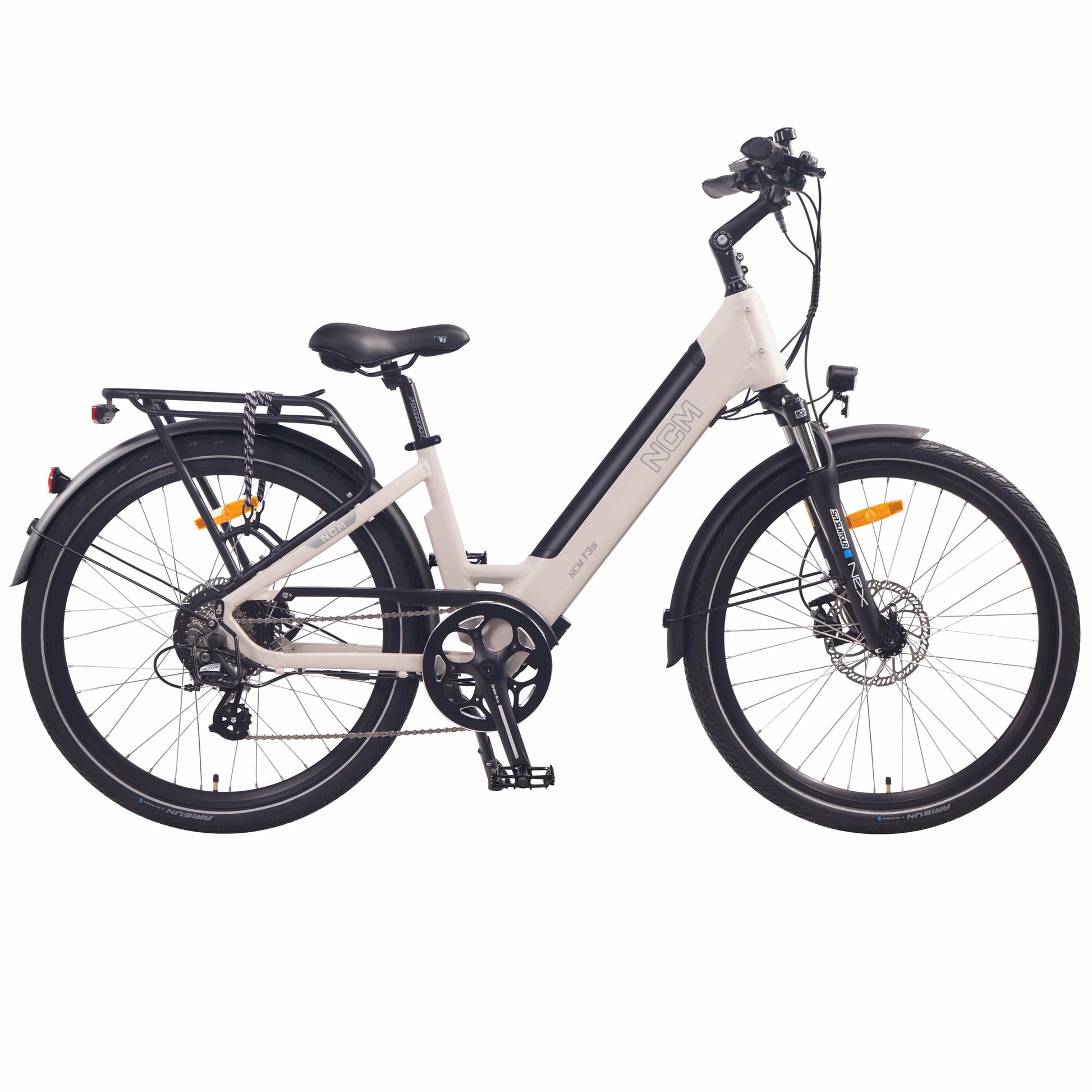

NCM T3s

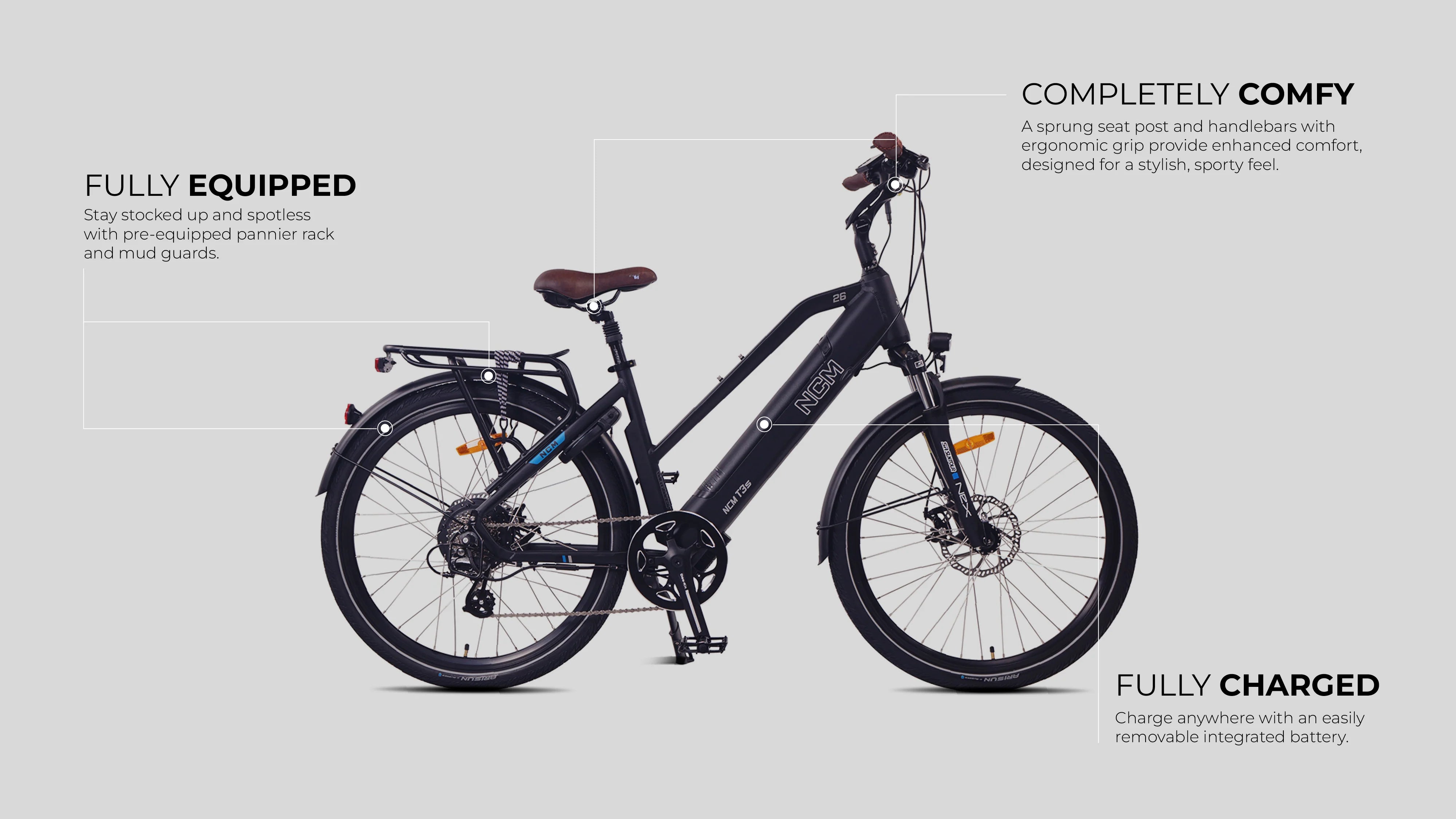

An exceptional entry point into the world of e-trekking bikes, the NCM T3s offers the chance to experience the smoothest city and countryside rides on an accessible step-through e-bike engineered with high-quality components.

BIKE COMPONENTS

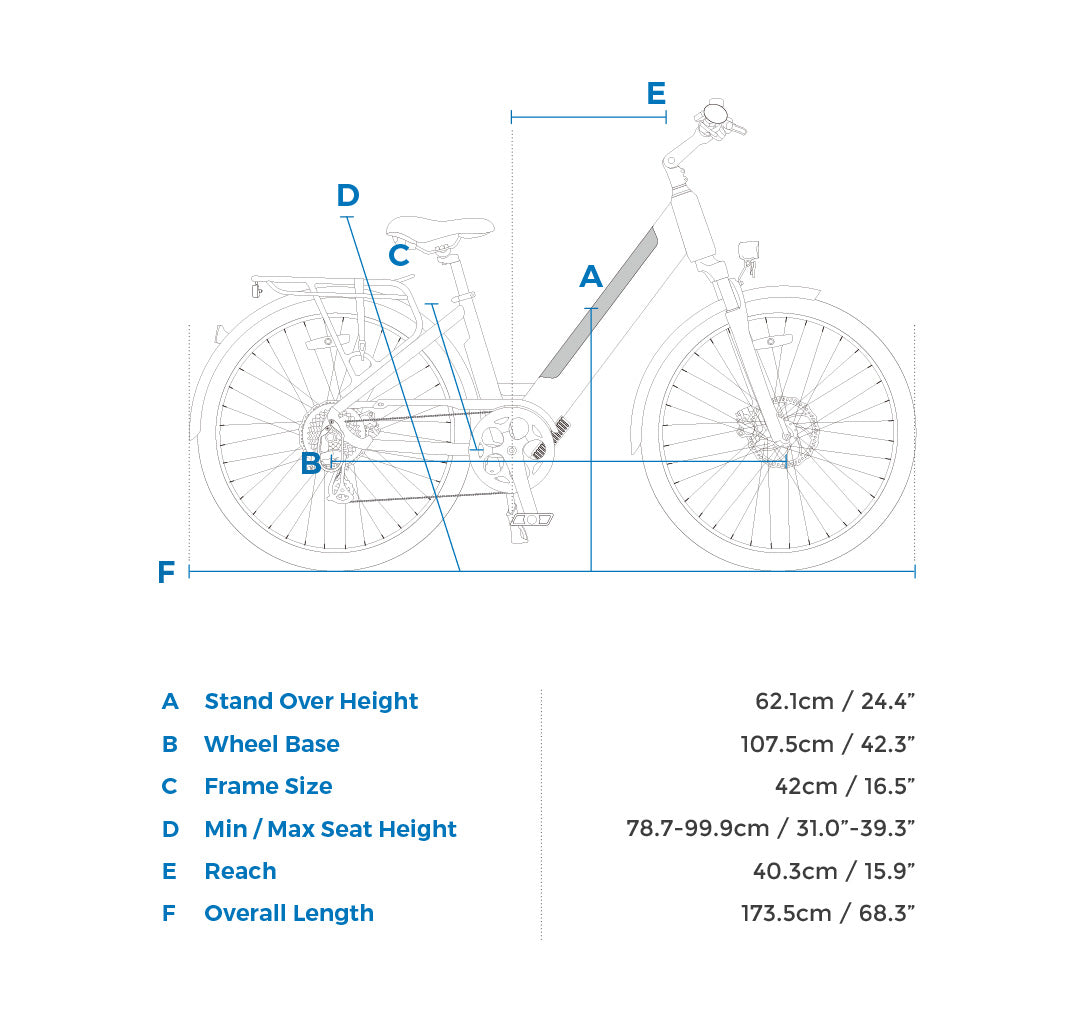

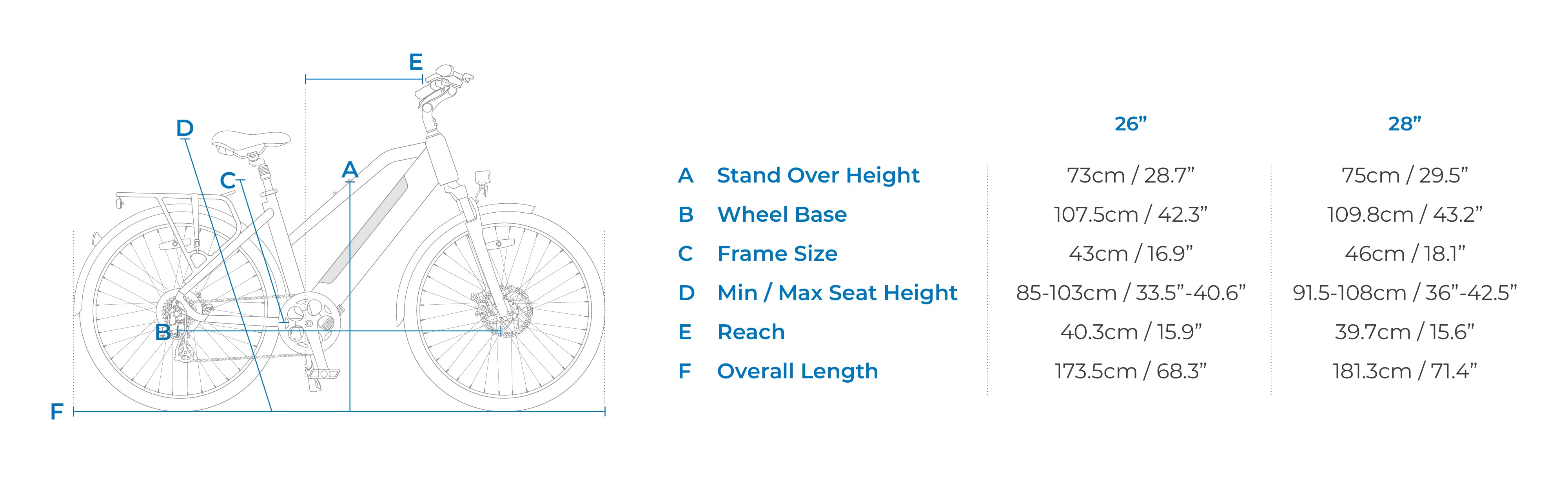

Frame: Alu. 6061, 26"*16.5" inches

Suspension Fork: Suntour, NEX 26

Brake: F/R: Tektro/Das-Kit Hydrualic Disc Brakes, MD-M280,180mm rotor

Freewheel: 7 Speed, 14-28T

Tire: Schwalbe, Marathon, 26*2.0, Black

Saddle: Selle Royal, FREEWAY

Stem: ZOOM, TDS-C269-8/ISO-P

Crank: Das-Kit, CT48A, 48T

Shifter: Shimano, Altus, R:SL-M315-7R, 7 Speed

Derailleur: Shimano, Altus RD-M310

Chain: KMC, Z51

Rack: Rear Rack with Elastic Straps

ELECTRIC COMPONENTS

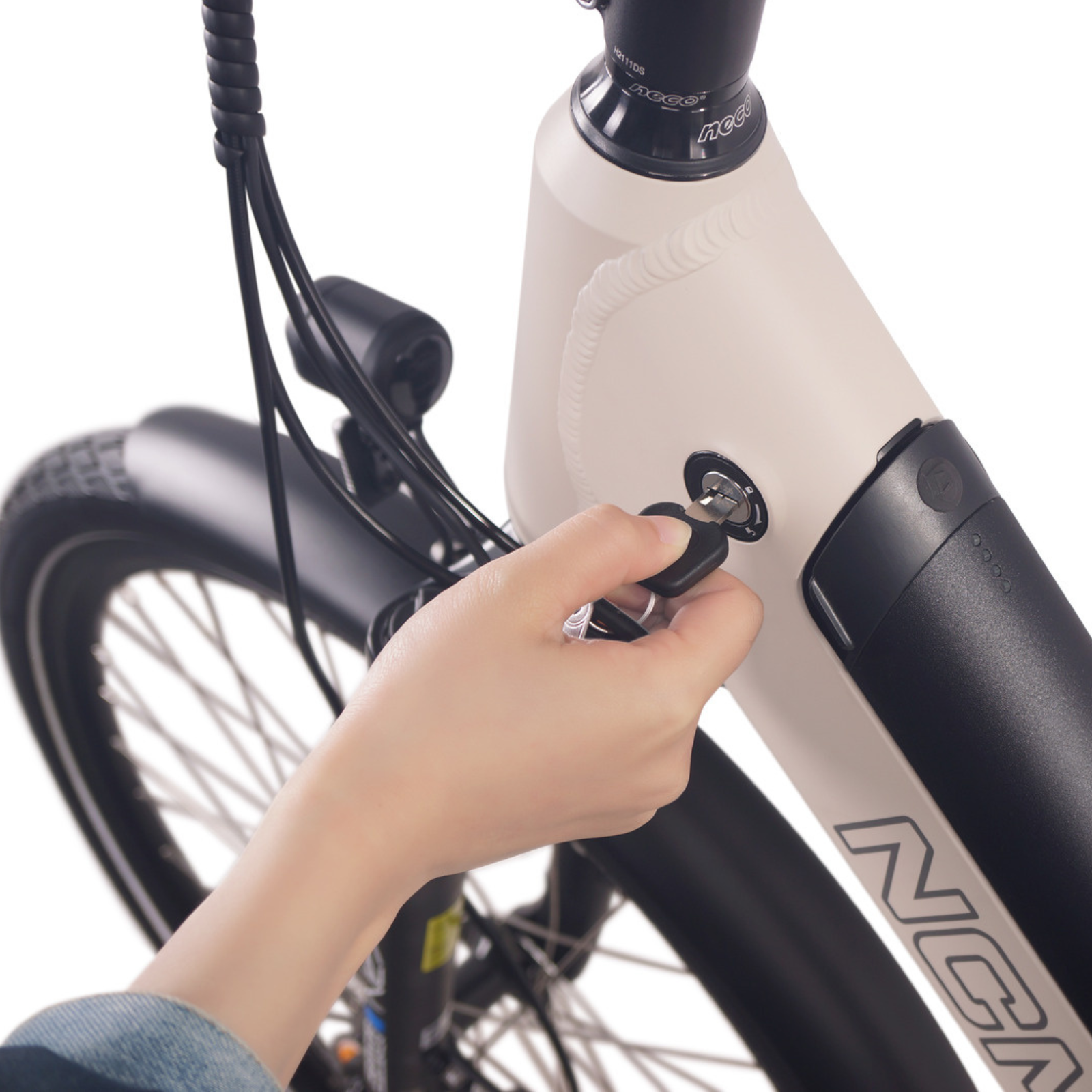

Battery: Das-Kit, i6-4812, 48V 12AH, 576WH

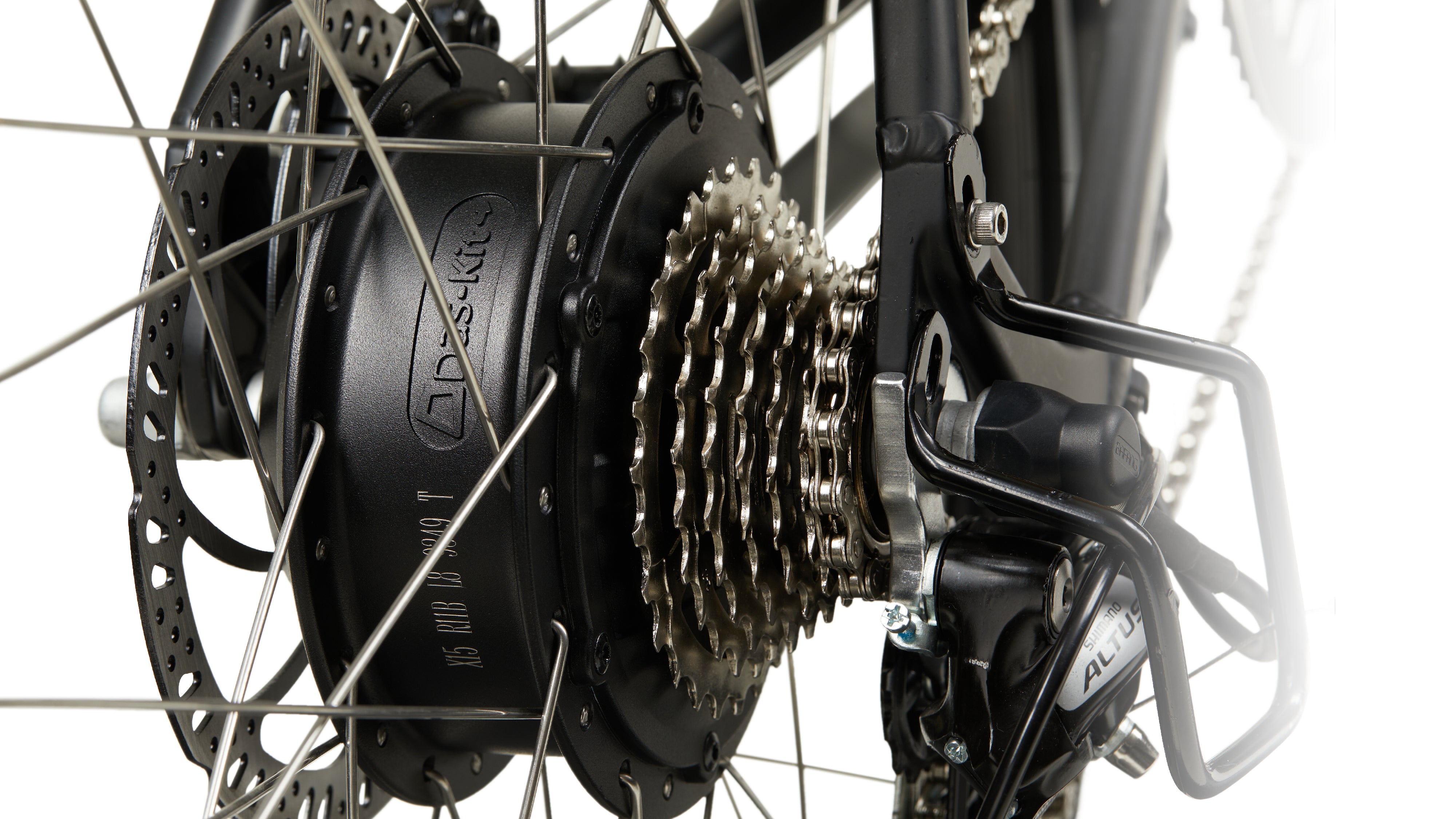

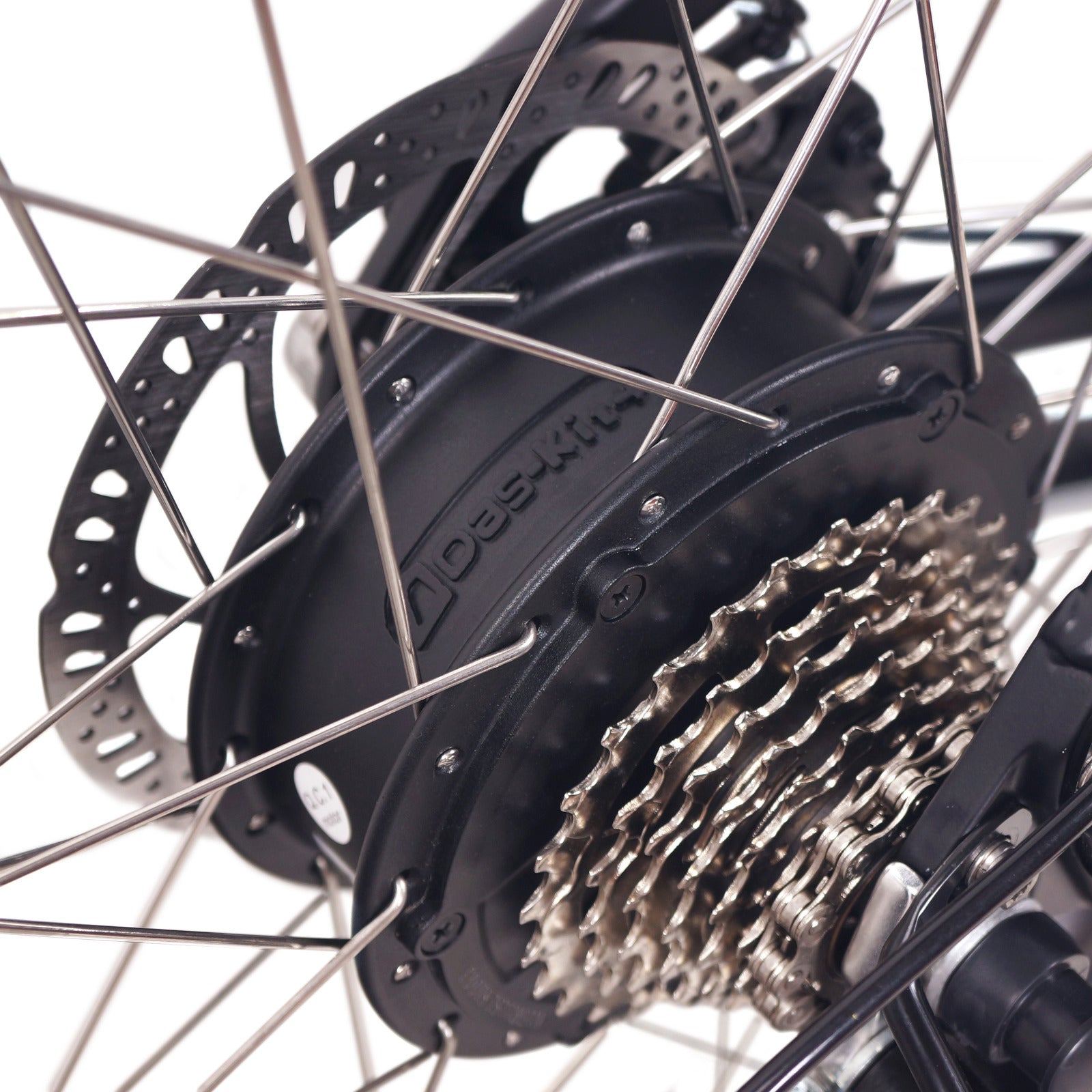

Hub Motor Rated: Das-Kit, X15, 48V 250W

Controller: Das-Kit, CT-i6, 48V18A

Charger: Das-Kit, 48V2A

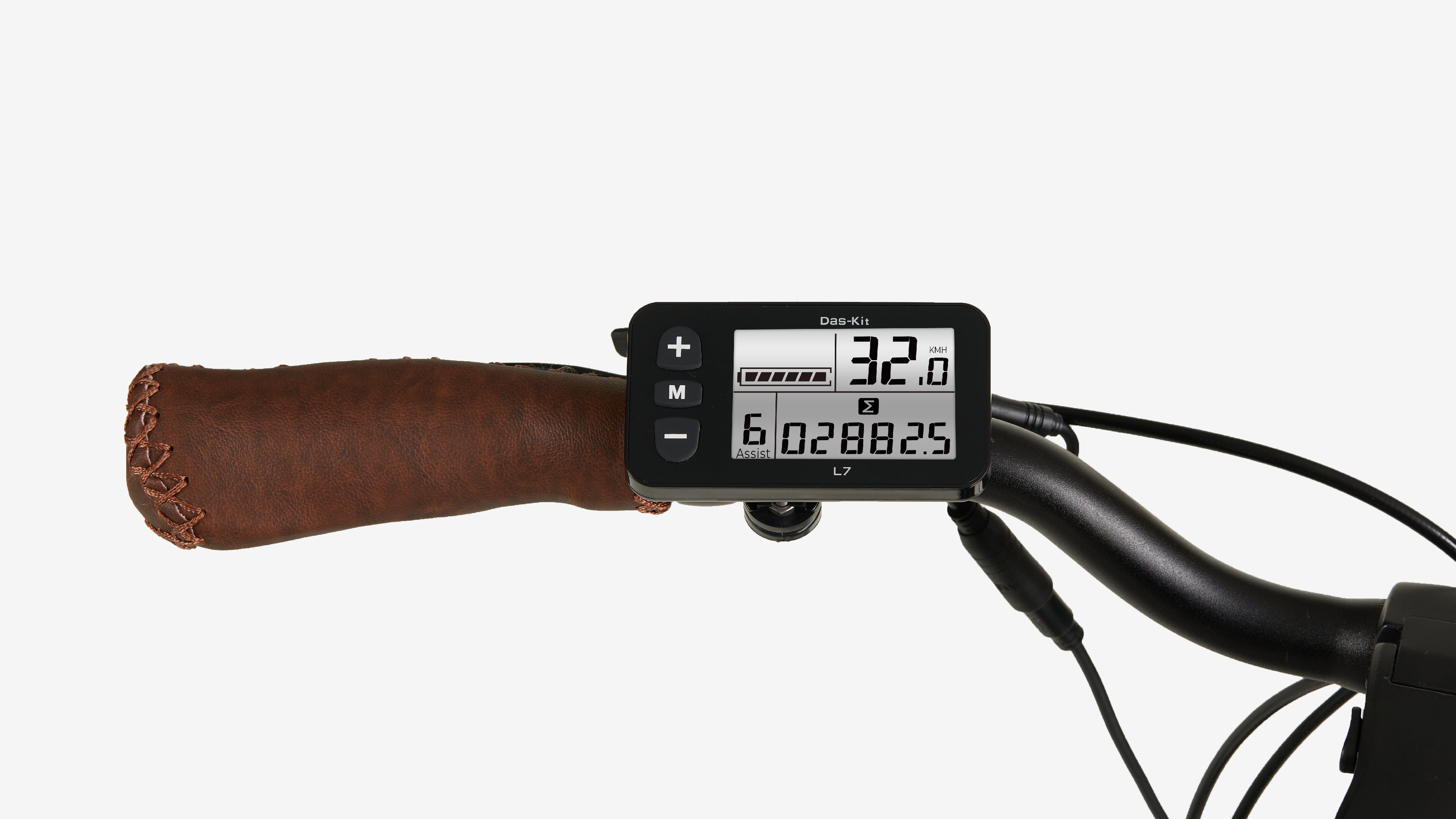

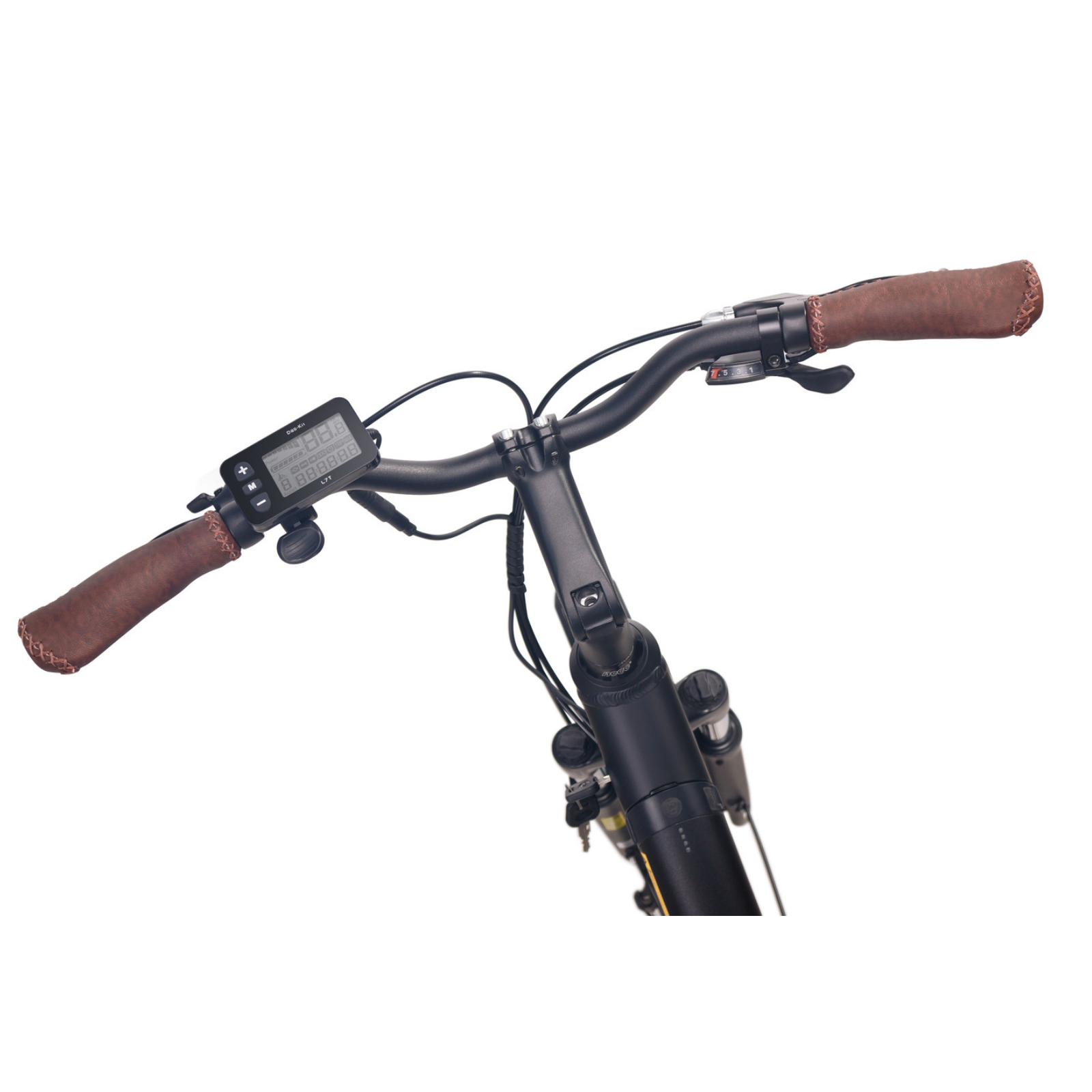

Display: Das-Kit, L7T

Front Light: DH002, 48V, 40 Lux

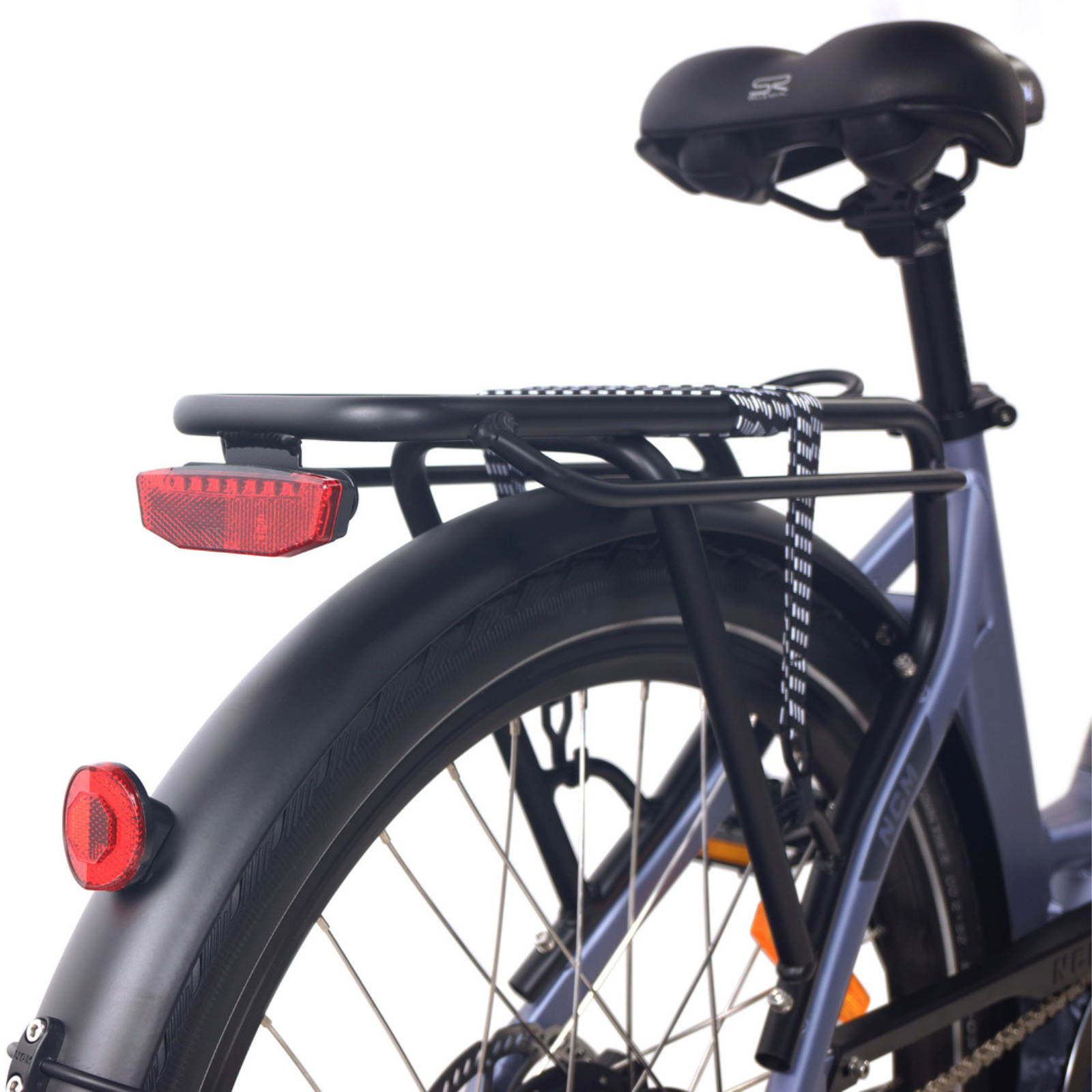

Rear Light: Spanninga, Kendo, DR009, AAA*2

WEIGHT

Net Weight (with battery): 26.0kg

Battery Weight: 3.5kg

Max Load (driver+bike): 140kg
