NCM Moscow

Rugged and versatile, the NCM Moscow is the perfect bike for weekday commuter and weekend warrior. Focusing on usability and capability, the Moscow is built with a tough aluminum frame, strong handlebars, and well positioned saddle for improved ergonomics in order to bring comfort and performance together. The high top tube on the bike gives the cycle added strength and allowing power to be effectively transferred to the road.

BIKE COMPONENTS

Frame: Alu. 6061, 26"*16.9 inches / Alu. 6061, 28"*18.1 inches

Suspension Fork: Suntour, NEX

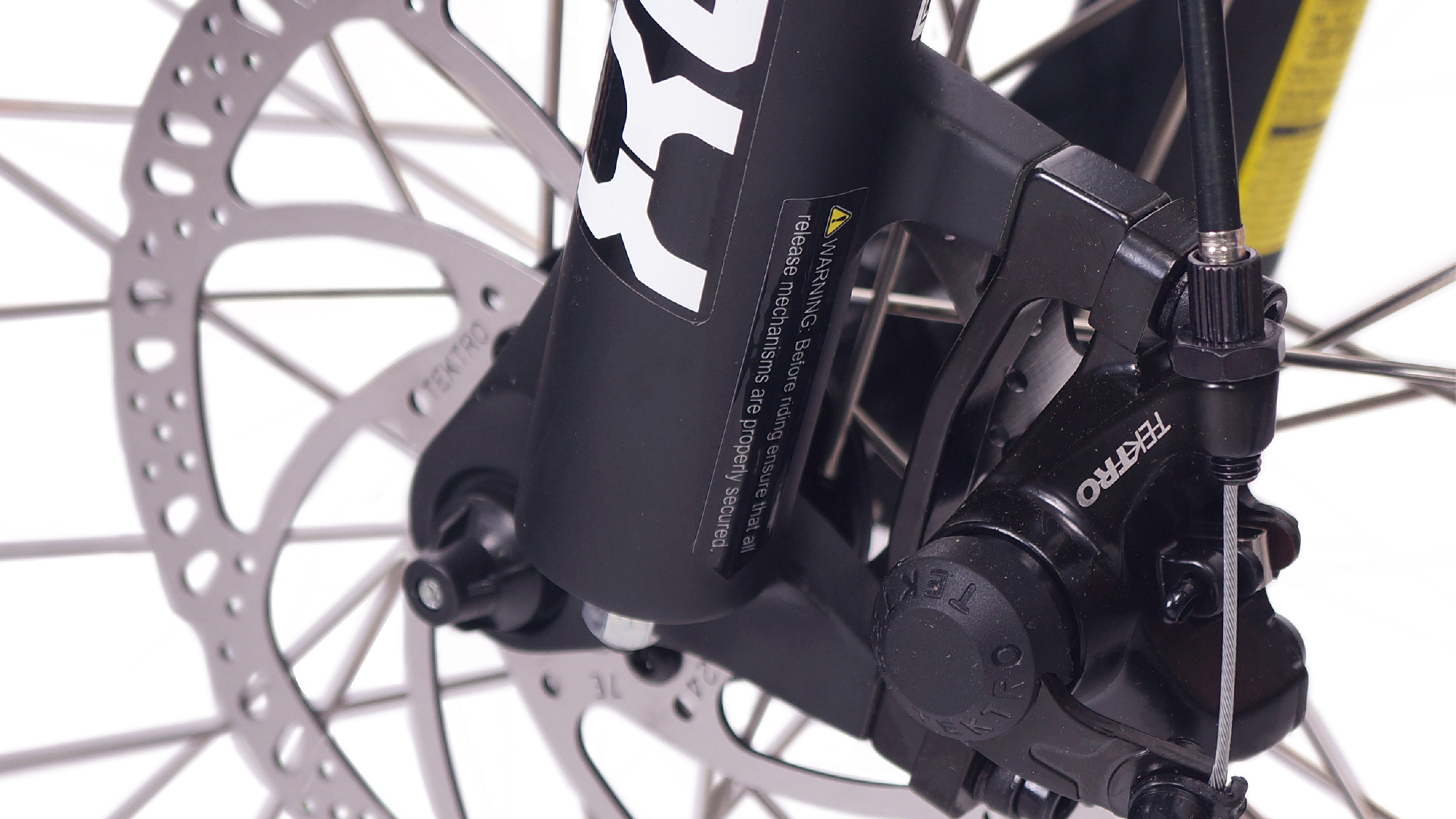

Brake: Disc Brakes

Freewheel: 7 Speed, 14-28T

Tire: Arisun, H-5213E

Saddle: Selle Royal, FREEWAY

Stem: Promax. MA-579

Crank: Das-Kit, CT48A, 48T

Shifter: Shimano, Altus, R: SL-M315-7R, 7 Speed

Derailleur: Shimano, Altus RD-M310

Chain: KMC, Z51

ELECTRIC COMPONENTS

Battery: Das-Kit, i5-4813, 48V 13Ah, 624Wh

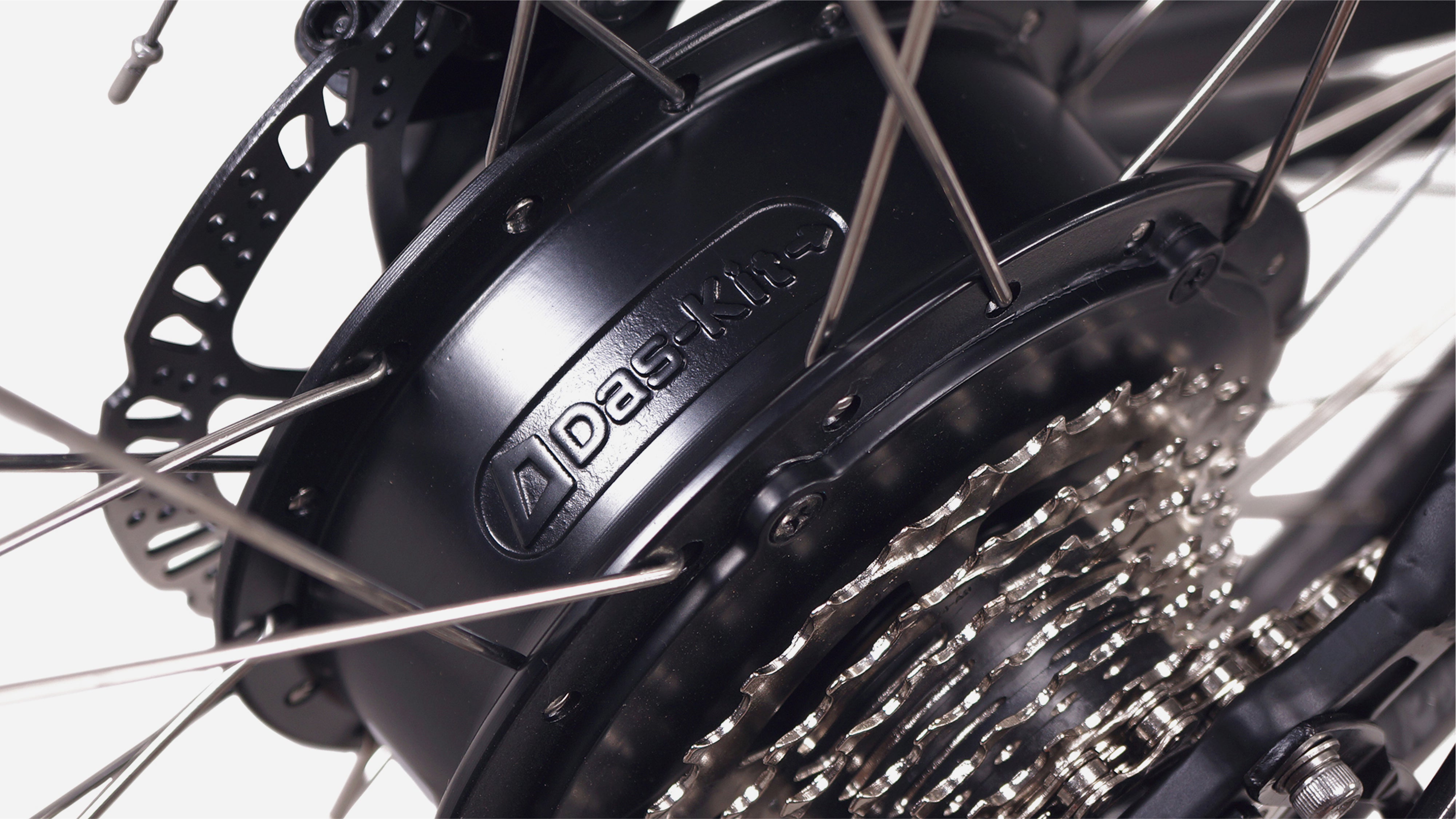

Hub Motor Rated: Das-Kit, X15, 48V 250W, 25KM/H

Controller: Das-Kit, CT-i6, 48V18A

Charger: Das-Kit, 48V2A

Display: Das-Kit, L7

Front Light: DH002, 48V, 40 Lux

Rear Light: DR009, AAA*2

WEIGHT

Net Weight (with battery): 27.0 kg

Battery Weight: 3.4kg

Max Load (driver+bike): 138.0kg
